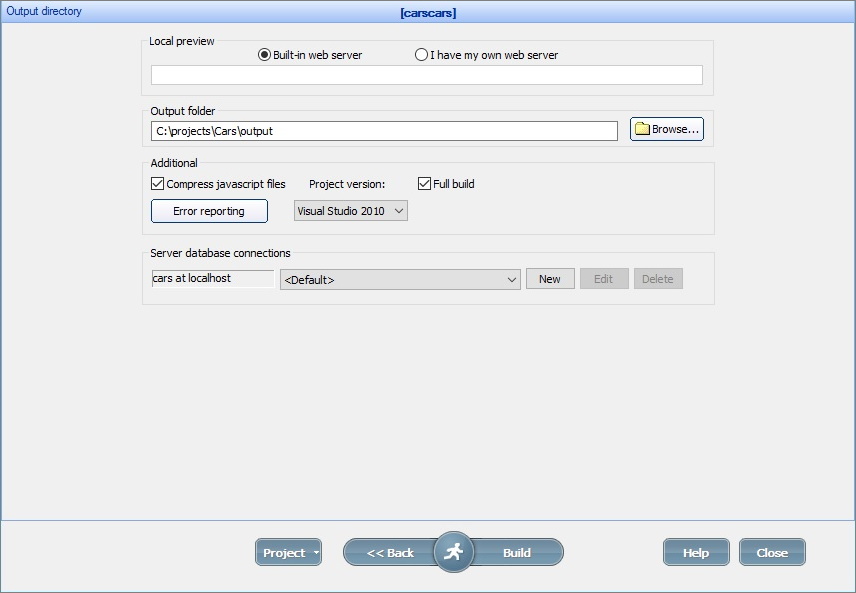

Select output directory where you like to put generated ASP.NET files
and include files. If you are running Internet Information Server
(IIS) on your machine, you can choose existing virtual directory
where you like to put files or create new virtual directory
Here is the full list of files to be created ( <TABLE_NAME>
will be replaced with the actual table name, Cars
in this example):
- index.htm: redirects user
to the login page or to the list page
- <TABLE_NAME>_list.aspx, <TABLE_NAME>_list.aspx.*:
displays list of records and search boxes
- <TABLE_NAME>_edit.aspx,
<TABLE_NAME>_edit.aspx.*: edit record page
- <TABLE_NAME>_add.aspx,
<TABLE_NAME>_add.aspx.*: add record page
- <TABLE_NAME>_search.aspx,
<TABLE_NAME>_search.aspx.*: advanced search page
- login.aspx, login.aspx.*: contains
username/password validation code
- imager.aspx, imager.aspx.*: displays
database images (JPEG, GIF, BMP)
- uploader.aspx, uploader.aspx.*: uploads
binary images and files into database
- getfile.aspx, getfile.aspx.*: extracts
and downloads binary files from database
- <TABLE_NAME>_print.aspx,
<TABLE_NAME>_print.aspx.*: display printer-friendly
version of the page
- <TABLE_NAME>_export.aspx,
<TABLE_NAME>_export.aspx.*: exports data to Word, Excel,
XML or CSV
- Web.config: Application
Configuration Files
- build.bat: Batch file for
project compilation
- Include\style.css: cascading
style sheet for the application
- Include\ts_picker.js: javascript-based
datepicker
- Images\icon_delete.gif: DELETE
icon
- Images\icon_edit.gif: EDIT icon
- Images\icon_key.gif: KEY
FIELD icon
- Images\icon_required.gif: REQUIRED
FIELD icon
- Images\cal.gif: calculator
image icon
- Images\next.gif: next
month icon
- Images\prev.gif: previous
month icon
- Images\printer.gif: "printer-friendly
version" icon
- Images\word.gif: Export to
Word icon
- Images\excel.gif: Export
to Excel icon
- Images\xml.gif: Export to
XML icon
- Images\csv.gif: Export to
CSV icon
